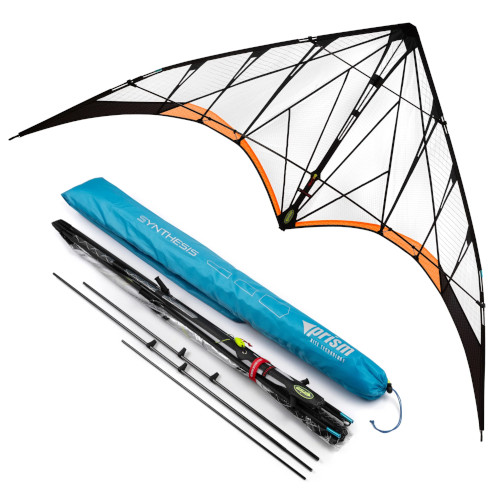

The Prism Synthesis
"Orange"
The innovative faceted leading edge shape with a 6 degree bend at the
ferrules gives it extra drive and precision in the air. On the ground
the straight leading edge sections can flex farther than a pre-bent
cambered wing, so you can flex them farther without breakage.
The sail is made from ultralight 1/2 oz ripstop polyester and low
stretch Mylar laminate materials. The Lower Spreaders are Dynamic DT15
wrapped, tapered carbon tubes and the rest of the frame is 6mm pultruded
carbon tubes with internal reinforcements at all stress points. The
tapered carbon spreaders put stiffness in the middle of the kite where
you want it for performance and minimize weight towards the wingtips for
quick response. The 6mm pultruded leading edge carbon tubes outperform
wrapped tubes in a mishap and are more affordable to replace. It has a
new crash-resistant floating Center T-piece, new molded APA fittings,
and a new way to precisely adjust your bridle.
Kite dimensions are 210cm x 92cm. Spectra lineset included 68kg x 25m or
"kite only"
Wind Range - 4 to 15 knots.
Kite Weight - 327 grams.
Upper Leading Edge - 931 mm x 6 mm carbon tube (inside of ferrule).
Lower Leading Edge - 661 mm x 6 mm carbon tube (inside of nock).
Upper Spreader - 575 mm x 5.5 mm carbon tube.
LowerSpreader-767mmx6.3/7.8mm wrappedcarbon tube(6mmferrule).
Spine - 891 mm x 6 mm carbon tube.
Standoffs - 255 mm x 3 mm carbon rod.
